Engineered To Be Stronger At Every Point

Rotary Cutter Specifications

4' Cutter

Width48"HP Rating24-40Side Skirt Depth7"Blades (Thickness & Width)1/2" x 3"Weight600 lbs.Gear Box40 HPHitchCAT 1 or Quick HitchConstruction/Clutch10 ga deck, slip clutch or shear pin: CAT 4 Driveline

4' SD Cutter

Width48"HP Rating24-40Side Skirt Depth7"Blades (Thickness & Width)1/2" x 3"Weight425 lbs.Gear Box40 HPHitchCAT 1Construction/Clutch11 ga deck, slip clutch or shear pin: CAT 4 Driveline

5' Cutter

Width60"HP Rating24-55Side Skirt Depth7"Blades (Thickness & Width)1/2" x 3"Weight718 lbs.Gear Box50 HPHitchCAT 1 or Quick HitchConstruction/Clutch10 ga deck, slip clutch or shear pin: CAT 4 Driveline

5' SD Cutter

Width60"HP Rating24-55Side Skirt Depth7"Blades (Thickness & Width)1/2" x 3"Weight500 lbs.Gear Box50 HPHitchCAT 1Construction/Clutch11 ga deck, slip clutch or shear pin: CAT 4 Driveline

6' Cutter

Width72"HP Rating35-72Side Skirt Depth8.25"Blades (Thickness & Width)1/2" x 3.5"Weight880 lbs.Gear Box75 HPHitchCAT 1 or Quick HitchConstruction/Clutch10 ga deck, slip clutch or shear pin: CAT 6 Driveline

7' Cutter

Width84"HP Rating35-83Side Skirt Depth9"Blades (Thickness & Width)1/2" x 3.5"Weight1,187 lbs.Gear Box85 HPHitchCAT 2 or Quick HitchConstruction/Clutch10 ga and 7 ga, slip clutch: CAT 6 Driveline

10' Cutter

Width130"HP Rating60-120Side Skirt Depth12"Blades (Thickness & Width)1/2" x 4"Weight2,050 lbs.Gear Box100 HP Center 2-75 HP OuterHitchCAT 3 Pull TypeConstruction/Clutch10 ga, slip clutch: Cat 6 Driveline: Tail Wheels Hydraulic Height Adjust

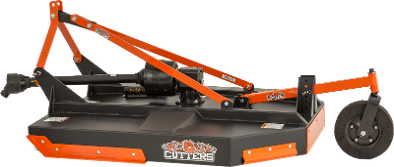

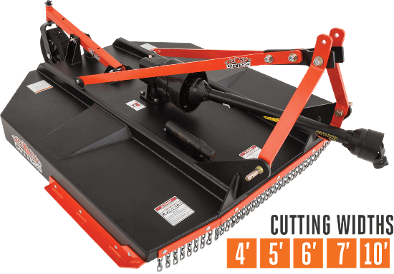

Standard-Duty Rotary Cutter 4 & 5 Foot Widths

Heavy-Duty Rotary Cutter 5 Foot Width

Heavy-Duty Rotary Cutter 7 Foot Width

Heavy-Duty Rotary Cutter 10 Foot Width

Flex Wing Cutter

Available in 12 Foot Width

12' Flex Wing Cutter

Width154"PTO HP Rating35-60Deck Height9.5"Blades
(Length x Thickness x Width)17.6" x ½" x 2"Weight2,994 lbs.Gear BoxOmni RCD-90, (2) Omni RC-71, Omni RC-71RCategoryPullConstruction/Clutch10 ga. Deck, Slip Clutch with CV U-Joint


Box Blades

Available in 4, 5, 6 & 7 Foot Widths

Optional Skid Plates Available


Box Blade Specifications

4' Box Blade

Width48"HP Rating20-55Moldboard Depth18Shanks4 AdjustableBlades (Scalping or Cutting)2Weight389 lbs.HitchCAT 1 or Quick HitchConstruction Features1/4" sides and 3/16" moldboard; Optional replaceable skids; 4" x 1/4" wall square tubing main frame

5' Box Blade

Width60"HP Rating25-55Moldboard Depth18Shanks4 AdjustableBlades (Scalping or Cutting)2Weight436 lbs.HitchCAT 1 or Quick HitchConstruction Features1/4" sides and 3/16" moldboard; Optional replaceable skids; 4" x 1/4" wall square tubing main frame

6' Box Blade

Width72"HP Rating25-55Moldboard Depth18Shanks6 AdjustableBlades (Scalping or Cutting)2Weight510 lbs.HitchCAT 1 or Quick HitchConstruction Features1/4" sides and 3/16" moldboard; Optional replaceable skids; 4" x 1/4" wall square tubing main frame

7' Box Blade

Width84"HP Rating80 MaxMoldboard Depth18Shanks7 AdjustableBlades (Scalping or Cutting)2Weight568 lbs.HitchCAT 2 or Quick HitchConstruction Features1/4" sides and 3/16" moldboard; Optional replaceable skids; 4" x 1/4" wall square tubing main frame

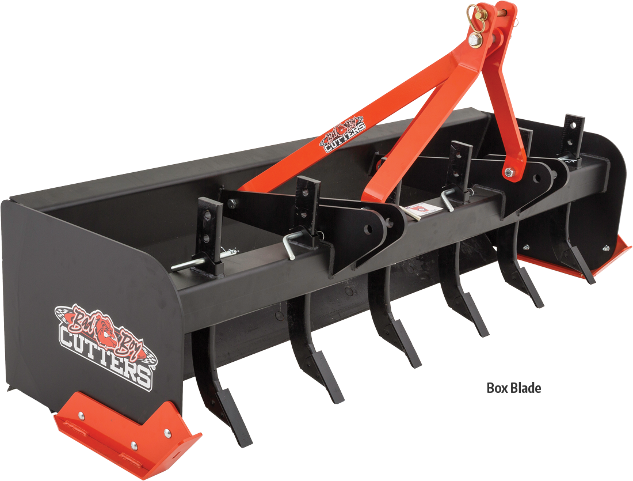

Box Blade

Grader Specifications

5' Land Grader

Width60"HP Rating18-55Moldboard Depth16.5Shanks4 Adjustable (optional)Blades (Scalping or Cutting)2Weight463 lbs.HitchCAT 1 or Quick HitchConstruction Features1/4" sides; 4" x 1/4" wall square tubing main frame; Replaceable skids; Fully adjustable blades

6' Land Grader

Width72"HP Rating18-55Moldboard Depth16.5Shanks6 Adjustable (optional)Blades (Scalping or Cutting)2Weight499 lbs.HitchCAT 1 or Quick HitchConstruction Features1/4" sides; 4" x 1/4" wall square tubing main frame; Replaceable skids; Fully adjustable blades

7' Land Grader

Width84"HP Rating80 MaxMoldboard Depth16.5Shanks7 Adjustable (optional)Blades (Scalping or Cutting)2Weight570 lbs.HitchCAT 2 or Quick HitchConstruction Features1/4" sides; 4" x 1/4" wall square tubing main frame; Replaceable skids; Fully adjustable blades

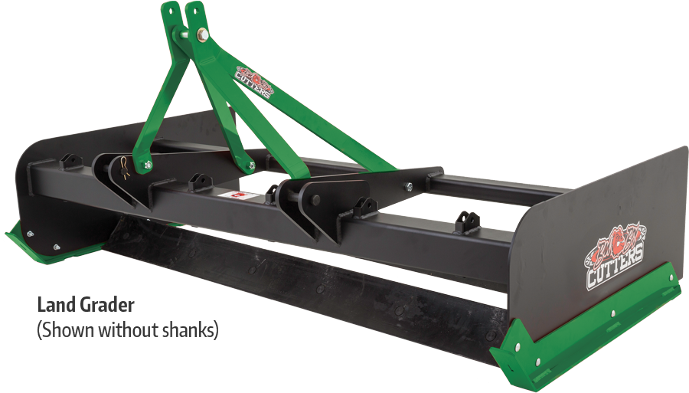

Land Grader

Disc Harrow Specifications

4' Disc Harrow

HitchCAT 1Disc Blade Size16"Number of Disc/Gang3Disc Spacing7 1/2"Main Frame2" x 2" x .180" Carbon Steel TubeDisc Gang Tube2" x 2" x .180" Carbon Steel TubeDisc Gang Axel1" Carbon SteelAngle - Front Gang0°, 7° & 14° to the FrontAngle - Rear Gang0°, 7° & 14° to the RearWeight402 lbs.

5' Disc Harrow

HitchCAT 1Disc Blade Size16"Number of Disc/Gang4Disc Spacing7 1/2"Main Frame2" x 2" x .180" Carbon Steel TubeDisc Gang Tube2" x 2" x .180" Carbon Steel TubeDisc Gang Axel1" Carbon SteelAngle - Front Gang0°, 7° & 14° to the FrontAngle - Rear Gang0°, 7°, & 14° to the RearWeight449 lbs.

6' Disc Harrow

HitchCAT 1, CAT 2Disc Blade Size18"Number of Disc/Gang5Disc Spacing7 1/2"Main Frame2.5" x 2.5" x 0.25" Carbon Steel TubeDisc Gang Tube2" x 3" x 0.25" Carbon Steel TubeDisc Gang Axel1" Carbon SteelAngle - Front Gang0°, 7°, 14°, 21°Angle - Rear Gang0°, 7°, 14°, 21°Weight702 lbs.

7' Disc Harrow

HitchCAT 1, CAT 2Disc Blade Size18"Number of Disc/Gang6Disc Spacing7 1/2"Main Frame2.5" x 2.5" x 0.25" Carbon Steel TubeDisc Gang Tube2" x 3" x 0.25" Carbon Steel TubeDisc Gang Axel1" Carbon SteelAngle - Front Gang0°, 7°, 14°, 21°Angle - Rear Gang0°, 7°, 14°, 21°Weight770 lbs.

Disc Harrow


Rotary Tillers

Available in 4, 5, 6 & 7 Foot Widths

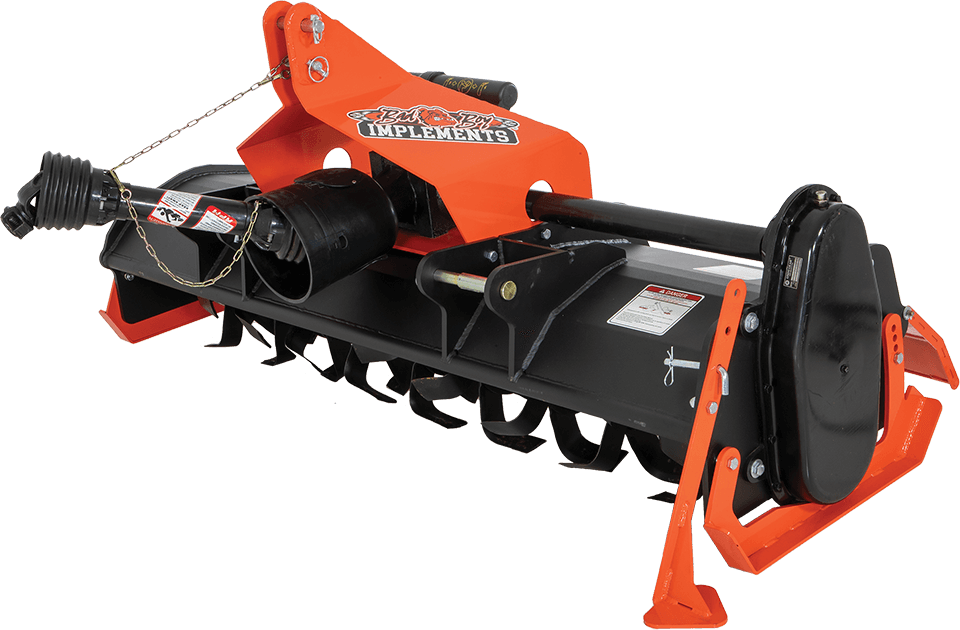

Rotary Tiller

Rotary Tiller

QA Front Hay Spear Specs

Spear LengthTop: 49"; Bottom: 17"Weight150 lbs.HitchSkid Steer Quick AttachFeatures3" 1/4" wall tubing frame: Mounts to Front Loader 2-17" stabilizer bars. Spears rated at 1,800 lbs.

QA Front Hay Spear

QA Front Hay Spear

2 Prong-3PT Hay Fork & Trailer Mover Combo Specs

Width26.5"Weight107 lbs.HitchCAT 1Features3˝ x 1/4˝ wall tubing frame; 2@ 49˝ spears rated at 1,800 lbs.; Receiver hitch and 2 5/16˝ ball mount

2 Prong-3PT Hay Fork & Trailer Mover Combo

2 Prong-3PT Hay Fork & Trailer Mover Combo

3 PT Trailer Mover

3 PT Trailer Mover Specs

Width26.5"Weight43 lbs.HitchCAT 1Features3" x 1/4" wall tubing frame; Receiver hitch and ball mount

Heavy-Duty Pallet Forks

Heavy-Duty Pallet Forks Specs

Width47"Weight350 lbs.HitchQuick AttachFeaturesClass 2 3,500 lb capacity, 4 x 48" fork, D-Ring


Standard Pallet Forks

Standard Pallet Forks Specs

Width47"Weight43 lbs.HitchQuick AttachFeaturesClass 2 2,200 lb capacity, 3” x 42” forks



Front Grapple Attachments

Available in 70" Large & 48" Small

Disc Harrow

Large Grapples

Width70"Shanks6Weight375 lbs.HitchQuick AttachFeatures(2) 2,500psi cylinders, Comes with hose kit, HP Rating 17-40,

Large Front Attach Grappler

Small Grapples

Width48"Shanks4Weight255 lbs.HitchQuick AttachFeatures2,500psi cylinder, Comes with hose kit, HP Rating 17-25

Small Front Attach Grappler

Grader Blade

Available in 4, 5, 6 & 7 Foot Widths

Grader Blade Specifications

4' Grader Blade

Width48"HP Rating17-25Blades (Scraping or Cutting)1Weight220 lbs.HitchQuick Hitch

5' Grader Blade

Width60"HP Rating17-40Blades (Scraping or Cutting)1Weight263 lbs.HitchQuick Hitch

6' Grader Blade

Width72"HP Rating20-40Blades (Scraping or Cutting)1Weight306 lbs.HitchQuick Hitch

7' Grader Blade

Width84"HP Rating20-40Blades (Scraping or Cutting)1Weight350 lbs.HitchQuick Hitch

Grader Blade

Landscape Rake

Landscape Rake Specifications

4' Landscape Rake

Width48"HP Rating17-25Weight175 lbs.HitchQuick Hitch

5' Landscape Rake

Width60"HP Rating17-40Weight201 lbs.HitchQuick Hitch

6' Landscape Rake

Width72"HP Rating20-40Weight227 lbs.HitchQuick Hitch

7' Landscape Rake

Width84"HP Rating20-40Weight254 lbs.HitchQuick Hitch

Landscape Rake

Mid-Mount Mower Deck

Available for Bad Boy Series 1025H Tractor

Mid-Mount Mower Deck Specifications

1025H 60" Mid-Mount Mower Deck

GearboxBB_GB_03642Warranty24 Months on Deck / 12 Months on GearboxWeight350 lbs.Total Width (With Chute)73.5"Cut Range1"–5" (Based on Factory Tires and Settings)Tractor Mid-PTO RPM2,000 RPMOil and FluidEP 80W-90 500ml / 16.9 oz.Drive TypeGearbox Over BeltPTO Driveline ProtectionShear Pin

Mid-Mount Mower Deck
