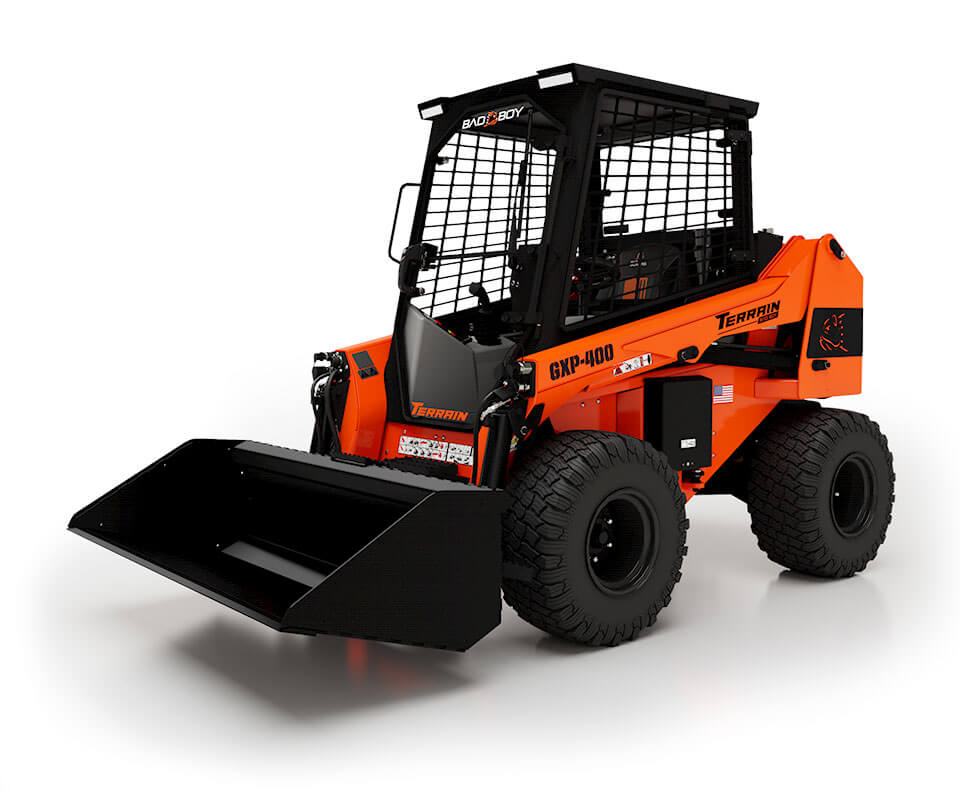

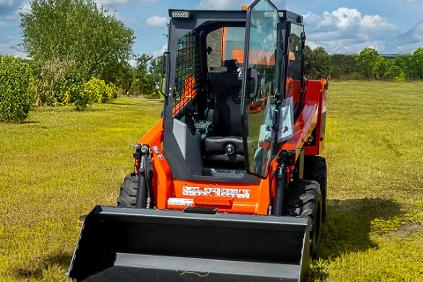

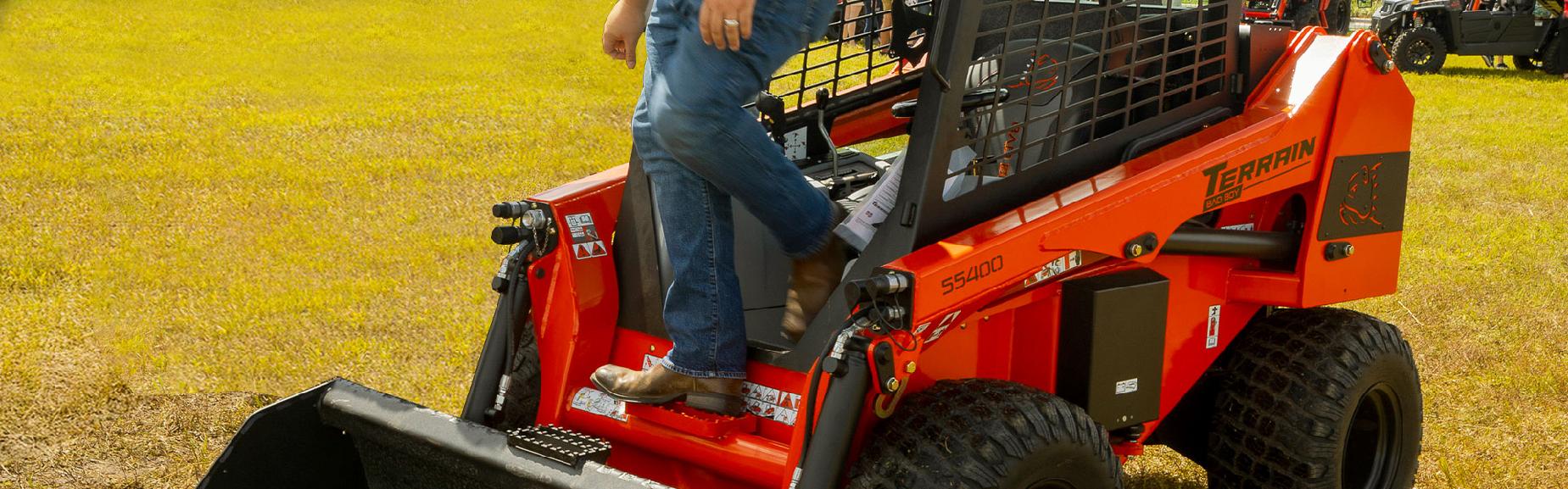

Terrain articulating loader
Versatility That Works As Hard As You Do
- Featuring:
- Vanguard 40 HP EFI
- Forward Visiblity To The Bucket Edge
- Low Ground Compaction Versus Skid Steers

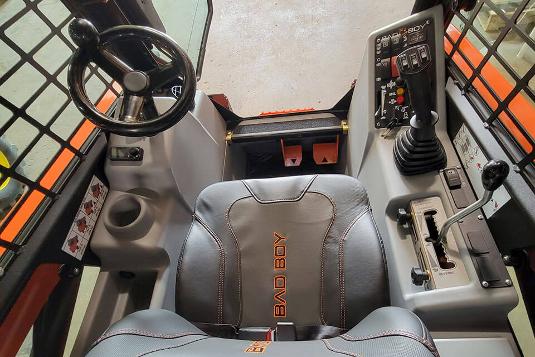

- Wide Cab with Premium Suspension Seat Standard
- Optional Full Enclosed Cab With Heat and Air
- 19 GPM Piston-Style Auxiliary Hydraulics
- Universal Quick Attach System for Multiple Implements
- Articulated Steering for Smooth Turns and Less Turf Damage
- Easy Rear Access to Engine, Pumps, and Battery
Call Dealer For Pricing:
Terrain specs
Terrain Engine Options
Vanguard 993cc, 40hp Twin Cylinder Air-cooled EFI/ETC
Terrain Dimensions
Length (without attachment) 89.4"Width 57.7"Height (with/without Beacon) 72.4"/75.4"Weight 3,850 lbs.
Terrain Features
Rated Operating Capacity 1,718 lbs.Tipping Load 3,437 lbs.Breakout Force 3,484 lbs.Lifting Capacity at Ground Level 2,600 lbs.Lifting Capacity to 50" 2,000 lbs.Lifting Height 96"Hydraulic System Auxiliary Piston-style PumpHydraulic Flow 19 GPMSystem Relief at Quick Couplers 2,900 psiTires 26x12.00-12 Turf TiresFuel 9.3 Gallons, GasolineGround Speed (Forward) Up To 8.8 mph
Terrain Standard Model Features
Infinite Variable Flow Control StandardUniversal Quick Attach StandardPanoramic Rear View Mirror StandardAutomatic Parking Brake StandardRoad Lights and LED Worklights StandardMulti-function Capable joystick StandardMagnetic Pump Clutches for Easy Starting StandardPremium Bad Boy Suspension Seat StandardFront Remote Hydraulic Coupler Standard12V Front Electric Plug Standard60" Material Bucket Standard
Terrain Premium Model Features
Hydraulic Quick Attach Lock PremiumRear Remote Hydraulic Coupler PremiumElectric Differential Lock PremiumFully Enclosed Cab with Heat and Air Premium
Terrain Safety Features
Operator Interlock Control System StandardLap Bar and Seat Presence Switch StandardIndividual Drive Presence Switches StandardLoader Arm Safety Stop StandardBackup Alarm and Rotating Beacon StandardFully Retractable Seat Belt StandardROPS/FOPS Certified Standard
Versatility That Works As Hard As You Do

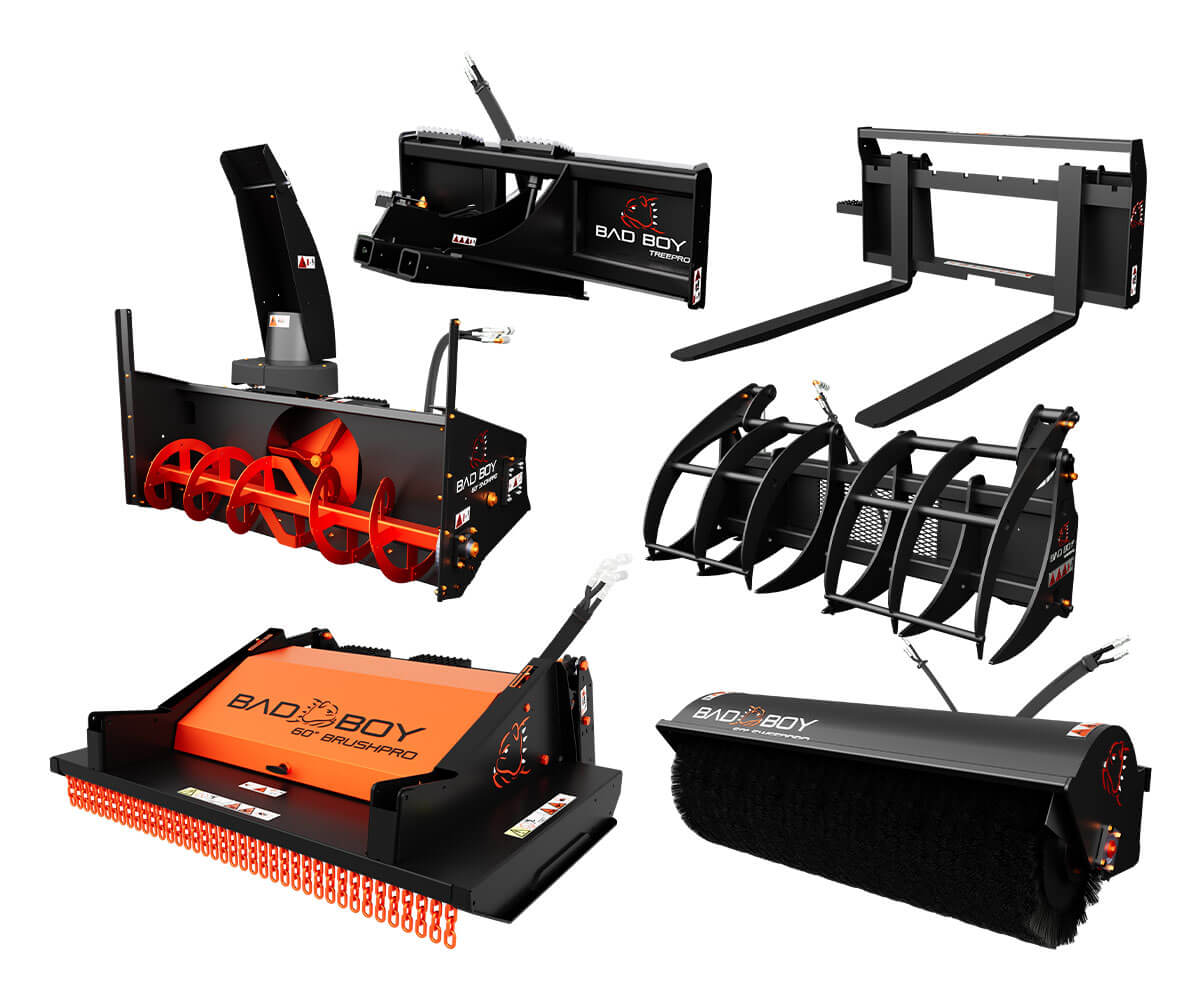

The Terrain is built to handle more than just one job. It comes standard with a 60" material bucket, ready to dig, haul, and load from day one. A full lineup of attachments including grapples, cutters, brooms, mowers, snow blowers, and tree pullers lets you tackle everything from landscaping to cleanup and snow removal with the same dependable machine.
